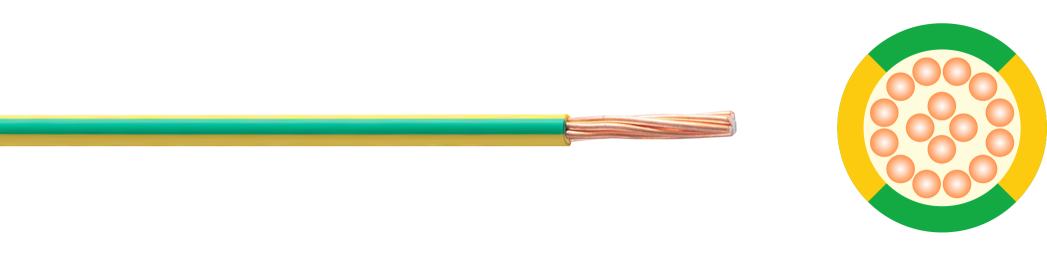

H05V-K / H07V-K Flexible Cable

Brand Name : Zion communication OR OEM

Model Number : H05V-K / H07V-K Flexible Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Class 5 flexible copper

Insulation : PVC (Polyvinyl Chloride)

Contact Now

H05V-K / H07V-K Flexible Cable

H05V-K / H07V-K Flexible Cable

H05V-K / H07V-K Flexible Cable






Application:     Cable Standards:
PVC panel wiring for use in the switch control, relay and
instrumentation panels of power switchgear and for purposes
such as internal connectors in rectifier equipment, motor
starters and controllers.		     EN 50525-2-31, EN 60228
    Flame Retardant according to IEC/EN 60332-1-2


Product Description:
Conductor Class 5 flexible copper
Insulation PVC (Polyvinyl Chloride)

Characteristics:
Voltage Rating Uo/U H05V-K: 300/500V
H07V-K: 450/750V
Temperature Rating -30°C to +70°C
-5°C to +70°C
Minimum Bending Radius Fixed: 6 x overall diameter

Core Identification:
1.5mm2 & 2.5mm2

    Brown     Black       Green/Yellow

    Grey     Blue     Violet

    White     Orange

4mm2 upto 300mm2

    Brown     Black       Green/Yellow

    Grey     Blue

400mm2, 500mm2 & 630mm2

      Green/Yellow

Should not be installed at temperatures below 0°C or above +40°C







H05V-K Dimensions:
  Nominal Cross Sectional Area (mm²) Nominal Cross Sectional Area (mm²) Nominal Overall Diameter Area (mm) NOMINAL WEIGHT
kg/km
  H05V-K0.5 0.5 2.2 9.0
  H05V-K0.8 0.8 2.4 11.0
  H05V-K1.0 1.0 2.5 14.0

H07V-K Dimensions:
  Nominal Cross Sectional Area (mm2) Nominal Cross Sectional Area (mm²) Nominal Overall Diameter Area (mm) NOMINAL WEIGHT
kg/km
  H07V-K1.5 1.5 2.9 20.0
  H07V-K2.5 2.5 3.6 31.0
  H07V-K4.0 4.0 4.1 46.0
  H07V-K6.0 6.0 4.7 75.0
  H07V-K10 10.0 6.1 125.0
  H07V-K16 16.0 7.3 199.0
  H07V-K25 25.0 9.0 299.0
  H07V-K35 35.0 10.2 421.0
  H07V-K50 50.0 12.1 539.0
  H07V-K70 70.0 13.8 730.0
  H07V-K95 95.0 16.3 973.0



Conductors:
  Nominal Cross Sectional Area (mm²) Maximum Diameter
Of Wires In Conductor
(mm)		 Maximum Resistance Of Conductor At 20ºC
  Plain Wires Metal-Coated Wires
  0.50 0.21 39.000 40.100
  0.75 0.21 26.000 26.700
  1.00 0.21 19.500 20.000
  1.50 0.26 13.300 13.700
  2.50 0.26 7.980 8.210
  4.00 0.31 4.950 5.090
  6.00 0.31 3.300 3.390
  10.00 0.41 1.910 1.950
  16.00 0.41 1.210 1.240
  25.00 0.41 0.780 0.795
  35.00 0.41 0.554 0.565
  50.00 0.41 0.386 0.393
  70.00 0.51 0.272 0.277
  95.00 0.51 0.206 0.210
The above table is in accordance with EN 60228






Current Carrying Capacity
    Nominal Cross
Sectional Area		 In A Thermal Insulated Wall
Amps		 On A Wall
Amps		 In Free Air
Amps
    2 Core 3 Core 2 Core 3 Core 1 Core
    0.50 - - - - -
    0.75 - - - - 15
    1.00 - - - - 19
    1.50 14.5 13.5 17.5 15.5 24
    2.50 19.5 18 24 21 32
    4.00 26 24 32 28 42
    6.00 34 31 41 36 54
    10.00 46 42 57 50 73
    16.00 61 56 76 68 98
    25.00 80 73 101 89 129
    35.00 99 89 125 110 158
    50.00 119 108 151 134 198
    70.00 151 136 192 171 245
    95.00 182 164 232 207 292
