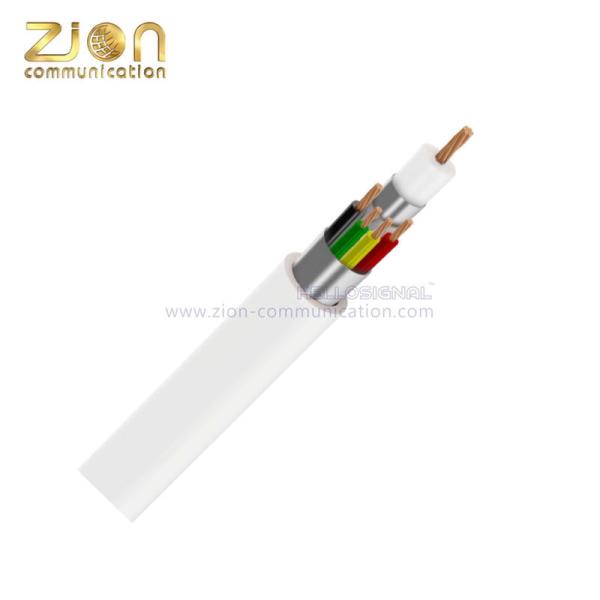

Mini Coax +(2×0.5+2×0.22) Cctv Cables Quality Factory Price Mini Coax Cables Packing Wooden Drum Factory Sale

Name: Mini Coax 2052022 Cctv Cables Quality Factory Price Mini Coax Cables Packing Wooden Drum Factory Sale
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CCTV SURVEILLANCE CABLE

Certification : UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 500FT, 1000FT Wooden Reel or Spool in Box

Conductor : Stranded Copper

Dielectric : Solid PE

Shield 1 : Al-Pes Tape /CU-Pes Tape

Shield 2 : Aluminium Braid 70%

Power Wire Conductor : Stranded Copper

Power wire Diameter of insulation : PVC

Jacket : PVC Common

Contact Now

Mini Coax +(2×0.5+2×0.22)(NO.7102162)
Construction Parameters:
Coaxial Cable
Inner Conductor	7x0,20mm Ø Stranded Copper
Dielectric	2,50mm Ø Solid PE
Shield 1	Al-Pes Tape /CU-Pes Tape
Shield 2	Aluminium Braid 70%
Power Cores
Inner Conductor	2x0,22mm² (7×0.18mm CU ) Stranded Copper
Insulation	1.0mm PVC
Low Capaciltance Computer Cable
Inner Conductor	2x0,50mm² (16×0.18mm CU ) Stranded Copper
Insulation	1.50mm PVC

Overall Outer Sheath	Al-Pes Tape (100% Coverage)
	6.5±0.2mm PVC Common RAL 7032 Grey

Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 64.9 Ω/km
Capacitance	52 ±3 pF/m
Impedance	75 ± 3 Ω
Velocity of Propagation	0.82
Sparker Test (VAC)	3

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃

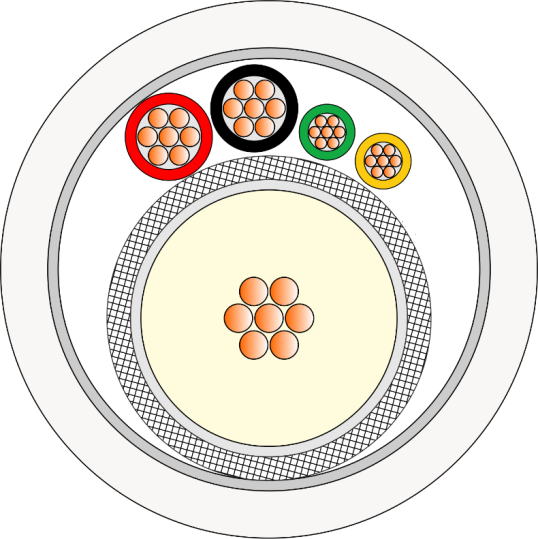

Cross Section

Attenuation(20℃):
Frequency (MHZ)		Max Attenuation (dB/100m)
1		1.80
5		3.90
10		4.80
50		11.00
100		15.20
200		21.80
400		29.80
700		34.40
900		36.00
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations
Marking	HELLOSIGNAL CCTV 4+1,MINI COAX + (2 x 0,50 + 2x 0,22)mm² CCTV COAXIAL CABLE 7102162×××M
Package	100M,200M Roll, Spool
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
