RG59 90%+2c 26 AWG High transmission1000 ft RG59 with Power Coaxial Communication Cable for CCTV Camera Siamese

Name: RG59 902c 26 AWG High transmission1000 ft RG59 with Power Coaxial Communication Cable for CCTV Camera Siamese
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CCTV SURVEILLANCE CABLE

Certification : UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 500FT, 1000FT Wooden Reel or Spool in Box

Conductor : 20AWG CCS

Dielectric : Foamed Polyethylene

Shield : AL-Braid(90%)

Power Wire Conductor : CCA

Power wire Diameter of insulation : HDPE(Red,Black,Blue)

Jacket : PVC

Contact Now

RG59 90% + 2X26 AWG 75 Ohm CCTV coaxial Cable NO.7102105


Construction Parameters:
Inner Conductor	0.032"/0.81mm/20AWG CCS
Dielectric	0.144"/3.66±0.05mm Foamed Polyethylene
Shield	0.12mmAL-Braid(90%)
Jacket	6.0mmPVC
Power Wire Conductor	2x(10*0.12mmCCA )
Power wire Diameter of insulation	0.91HDPE(Red,Black)
Jacket	3.0mmPVC
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft
Inner Conductor Resistance	The Max. at 20℃ shall be < 139.5 Ω/km 42.55Ω/1000ft
Capacitance	52 ±3 pF/m 15.8 ±1 pF/ft
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 22dB
Velocity of Propagation	0.85
Sparker Test (VAC)	4

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	6.0×3.0mm

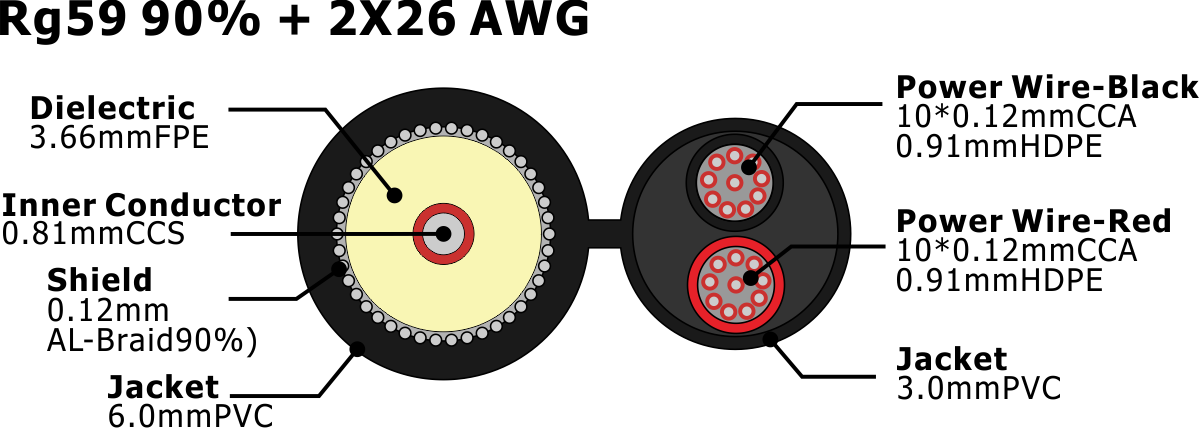

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
5	0.86	2.82
55	2.05	6.73
83	2.45	8.04
187	3.60	11.81
211	3.80	12.47
250	4.10	13.45
300	4.45	14.60
350	4.80	15.75
400	5.10	16.73
450	5.40	17.72
500	5.70	18.70
550	5.95	19.52
600	6.20	20.34
750	6.97	22.87
865	7.52	24.67
1000	8.12	26.64

Order Informations:
Marking	HELLOSIGNAL RG59 90% + 2X26 AWG CCTV COAXIAL CABLE 7102103 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
