24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters

Brand Name : HELLOSIGNAL® OR OEM

Place of Origin : CHINA

MOQ : 50pcs

Payment Terms : T/T

Supply Ability : no limit

Delivery Time : Normally 25 days after received the deposit.

Packaging Details : 10 PC / Plastic Bag

Durability : <0.3dB typical change, 200 matings

Interchangeability : ≤0.2dB

Plug -in times : ≤ 500

Tensile strength : >70N

Operating Temperature (℃) : -40 to + 85°C

Contact Now

MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters


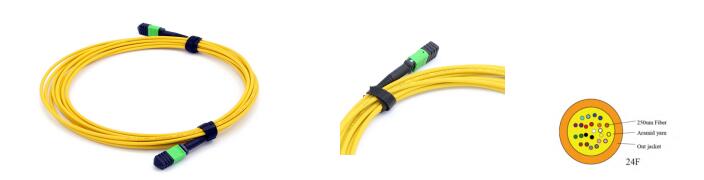

24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters



Zion Code: ZCM1152HIA1X

Description:

The ZCM1152HIA1X is an MPO Female to MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord, designed for custom-length applications in high-density environments such as data centers, optical fiber to building deployments, and internal optical equipment connections.



Key Features

  • Connector Type: MPO Female to MPO Female.
  • Fiber Type: Singlemode (SM) with 24 fibers in a 3.0mm Low-Smoke Zero Halogen (LSZH) jacket.
  • Data Rate Support: Optimized for 10G/40G/100G applications.
  • Application: Designed to interconnect MPO modules or facilitate backbone cabling in high-density environments, such as data centers.
  • Flexibility: Enables rapid deployment, flexible cable management, and easy connector style changes by replacing cassettes instead of entire trunk cables.



Industrial Standards Compliance

  • MPO Singlemode:
    • Standard Loss MPO: Green connectors + black boot (SM APC).
    • Super Low Loss MPO: Yellow connectors + black boot (SM APC).
  • MPO Multimode:
    • OM1 & OM2 PC: Beige connectors + black boot.
    • OM3 & OM4 PC: Aqua or Heather Violet connectors + black boot.
  • Complies with:
    • IEC Standards: IEC 61754-7, IEC 61755.
    • Telcordia GR-1435-CORE, JIS C5982.
    • TIA-604-5 (FOCIS5), TIA-568-C.
    • IEEE 802.3 (40G and 100G applications).



Optical Specifications

Insertion Loss (MPO) Singlemode (APC): ≤0.75dB (Std.), ≤0.35dB (Low Loss)

Insertion Loss (MPO) Multimode (PC): ≤0.60dB (Std.), ≤0.35dB (Low Loss)

Return Loss (MPO) Singlemode (APC): ≥60dB (APC 8-degree polishing)

Return Loss (MPO) Multimode (PC): ≥25dB

Durability Singlemode (APC): <0.3dB typical change (200 matings)

Tensile Strength Singlemode (APC): >70N

Operating Temperature Singlemode (APC): -40°C to +85°C









Special Features

  • Low Insertion Loss: Ensures minimal signal degradation.
  • High Return Loss: Reduces reflections for improved performance.
  • MT-Based Multi-Fiber Connector: Supports up to 144 fiber terminations.
  • Durable Design: Supports ≥500 plug-ins with stable performance.
  • Ruggedized Cable Options: Available in round, oval, or bare ribbon configurations.
  • Color Coding: Differentiates fiber type, polish type, and connector grade.



Applications

  • Data Centers:

High-density backbone cabling for 40G QSFP+ SR4, 40G QSFP+ CSR4, and 100G QSFP28 SR4 optics direct connections.

Interconnect MPO cassettes, panels, or ruggedized MPO fan-outs.

  • Optical Fiber to the Building:

Supports large-scale optical fiber deployments for high-speed communication.

  • Internal Fiber Equipment Connections:

Ideal for internal connectivity within optical devices or networking hardware

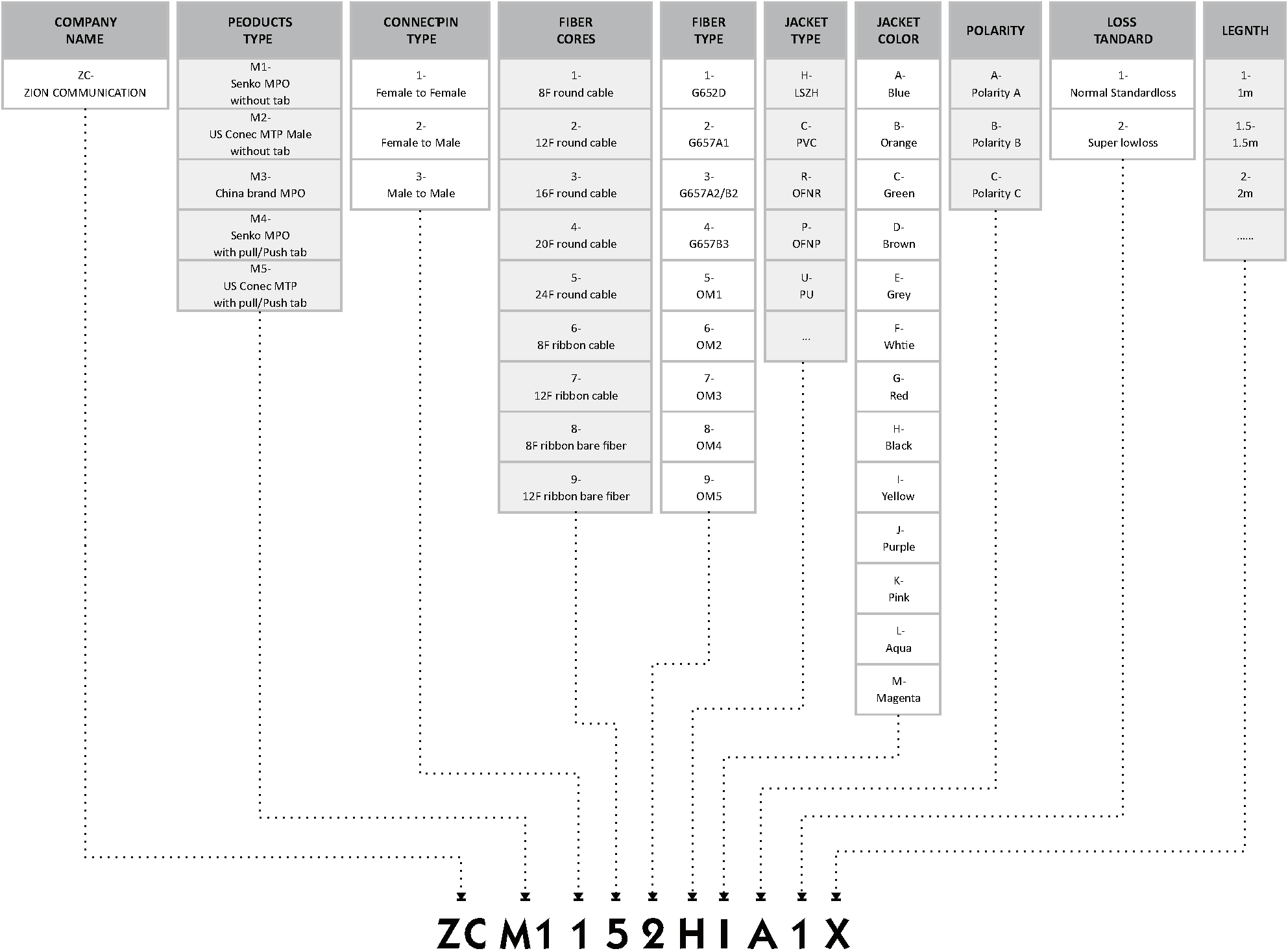

Naming Rules&Order Confirmation Information:



24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters

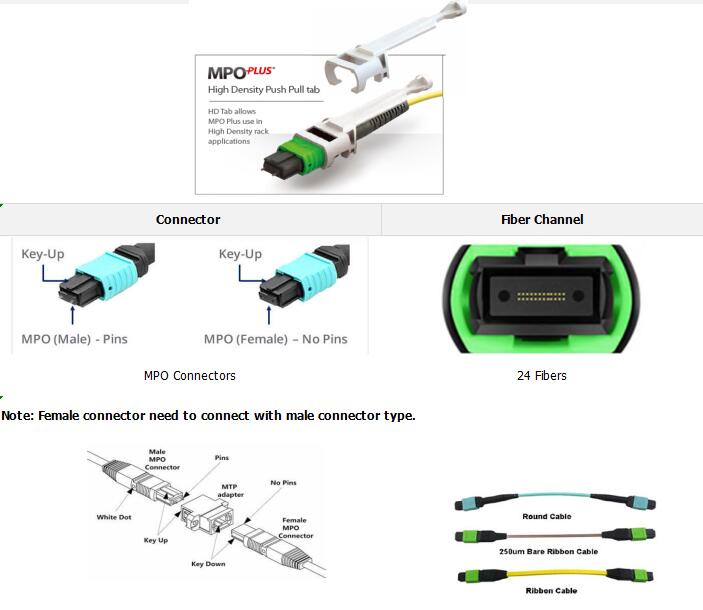

Push Pull Tab For Senko MPO



24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters







MPO-MPO 12F Fiber Patch Cord drawing.



24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters





Overall Length(L)(m): length of tolerance(cm)
0<L<1: +5/-0
1<L<10: +10/-0
10<L<40: +15/-0
40<L: ‘+0.5% x L/-0









Three Connection Methods Help Keep the Right MTP/MPO Polarity



24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters





Base-24 Polarity Solution

To catch up with the increased demand for higher bandwidth, 24-fiber MTP/MPO cable is introduced to facilitate

migration to 100G network. It doubles the density of 12-fiber cabling in the same footprint, which reduces the fiber

count,allows for fewer cable pathway, and improving airflow. The polarity maintenance of base-24 MTP/MPO cabling,

however, is more complicated. OMC recommends the Type A (key-up to key-down) MTP/MPO trunk cable. With our

Type Aand Type AF cassette, no need for A-to-A patch cable any more. The connectivity method is illustrated in the

following picture.





24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters











Zion Communication's Hot TRUNK CABLE



  • 7236001:  ZCM1122HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
  • 7236002:  ZCM1152HIA1X - MPO Female To MPO Female SM 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
  • 7236003:  ZCM1127HLA1X - MPO Female To MPO Female OM3 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
  • 7236004:  ZCM1157HLA1X - MPO Female To MPO Female OM3 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
  • 7236005:  ZCM1128HMA1X - MPO Female To MPO Female OM4 3.0mm LSZH 12 Fibers MPO Patch Cord Custom Meters.
  • 7236006:  ZCM1158HMA1X - MPO Female To MPO Female OM4 3.0mm LSZH 24 Fibers MPO Patch Cord Custom Meters.
  • 7236007:  ZCM2122HIA1X - MTP Female To MTP Female SM 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
  • 7236008:  ZCM2152HIA1X - MTP Female To MTP Female SM 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.
  • 7236009:  ZCM2127HLA1X - MTP Female To MTP Female OM3 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
  • 7236010:  ZCM2157HLA1X - MTP Female To MTP Female OM3 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.
  • 7236011:  ZCM2128HMA1X - MTP Female To MTP Female OM4 3.0mm LSZH 12 Fibers MTP Patch Cord Custom Meters.
  • 7236012:  ZCM2158HMA1X - MTP Female To MTP Female OM4 3.0mm LSZH 24 Fibers MTP Patch Cord Custom Meters.







Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .

Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .

Packing can be customized.




24 Fibers MPO Female To MPO Female Singlemode 3.0mm LSZH MPO Patch Cord Custom Meters











OEM/ODM service for you

OMC’s LC Female to LC male Fixed attenuator are available for SM UPC (1-25dB) and SM APC (1-25dB)

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

  • Customized Logo
  • Label/PE bag/Carton design
