12 Fibers MPO to LC OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

Zion Code and Description

Zion Code: ZCM11A27HAAX

Description:

The ZCM11A27HAAX is a 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight Harness Cable, specifically designed for high-density data

center applications, fiber optic to building connections, and internal connections within optical transceiver equipment (e.g., 40G, 100G QSFP+).

Key Features:

• MPO (Multi-Fiber Push On) Connector: A high-density fiber optic connector commonly used in data centers and fiber optic networks.
• Fiber Configuration: 12 fibers MPO to 6 LC duplex (6xLC uniboot; 12 LC simplex) fanout cables.
• Performance: Optimized for 40G QSFP+ PLR4 to 10G SFP+ LR direct connections, allowing efficient data transmission with minimal cabling and reducing clutter in high-density environments.
• Cable Design: Straight harness cables, engineered for space-saving and easy cable management in data centers.
• Applications: Ideal for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4, and 10/40/100G high-density data center applications.

Connectors' Industrial Standard:

• MPO Singlemode: IEC 61754-7 (SM APC: Green connectors + black boot for Standard Loss MPO, SM APC: Yellow connectors + black boot for Super Low Loss MPO)
• MPO Multimode: IEC 61754-7 (OM1 & OM2 PC: Beige connectors + black boot for Standard Loss MPO, OM3 & OM4 PC: Aqua connectors + black boot)
• Other Connectors: SC, LC, FC, ST, and E2000, all meeting their respective industrial standards (e.g., TIA/EIA, FOCIS3, GR-326).

Optical Specifications:

• Insertion Loss (MPO):
  • Standard loss: ≤0.75dB (max), ≤0.50dB (typical)
  • Super low loss: ≤0.35dB (max), ≤0.20dB (typical)
• Insertion Loss (LC/SC/FC/ST): ≤0.3dB
• Return Loss (MPO): ≥60dB (for Singlemode with APC 8-degree polishing)
• Return Loss (LC/SC/FC/ST): APC ≥60dB, UPC ≥50dB
• Durability: <0.3dB typical change after 200 matings, 500 insert-pull cycles with IL <0.5dB
• Tensile Strength: >70N
• Operating Temperature: -40°C to +85°C

Features:

• Low Insertion Loss: Ensures minimal signal degradation.
• High Return Loss: Provides higher performance by reducing reflections.
• MT-Based Multi-fiber Connector: Available in 4, 8, 12, and 24 fiber configurations for mass termination.
• Ruggedized Cable Options: Available in round, oval, and bare ribbon cables, which are designed to handle high-density environments.
• Color-Coded Housings: Available to differentiate fiber type, polish type, and connector grade.
• Repeatability and Exchangeability: Reliable and consistent performance.

Merits of MTP/MPO Patch Cables:

• High Quality: Factory pre-terminated, tested, and packaged with test reports for quality assurance.
• Space Saving: Smaller diameters reduce cable volume and improve air conditioning in data centers.
• Time-Saving: Plug-and-play design reduces installation time by allowing for immediate use.

Applications:

• Data Center: Optimized for high-density fiber patching, enabling fast and efficient connections between high-speed equipment like QSFP+ and SFP+ ports.
• Optical Fiber to Building: Supports fiber deployment for building-to-building connections.
• Internal Equipment Connections: Used within optical devices for internal connections in networking equipment.

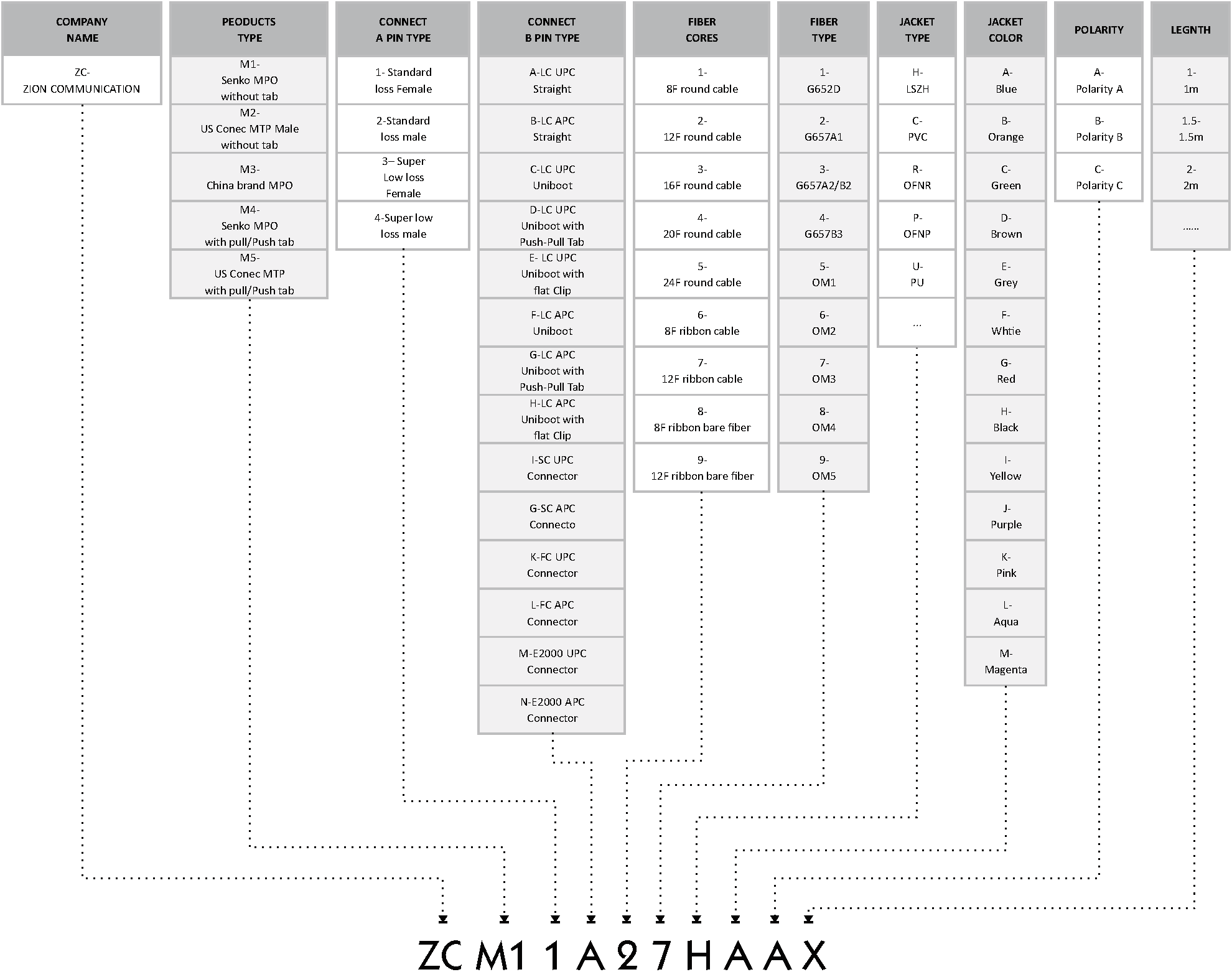

Naming Rules&Order Confirmation Information:

Zion Communication's Hot MPO-LC Straight harness Cables

• 7236037 ZCM11A12HIAX: : 8F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236038 ZCM11A22HIAX: : 12F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236039 ZCM11A52HIAX: : 24F MPO SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236040 ZCM11A17HAAX: : 8F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236041 ZCM11A27HAAX: : 12F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236042 ZCM11A57HAAX: : 24F MPO OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236043 ZCM11A18HMAX: : 8F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236044 ZCM11A28HMAX: : 12F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236045 ZCM11A58HMAX: : 24F MPO OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236046 ZCM21A12HIAX: : 8F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236047 ZCM21A22HIAX: : 12F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236048 ZCM21A52HIAX: : 24F MTP SM Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236049 ZCM21A17HAAX: : 8F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236050 ZCM21A27HAAX: : 12F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236051 ZCM21A57HAAX: : 24F MTP OM3 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236052 ZCM21A18HMAX: : 8F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236053 ZCM21A28HMAX: : 12F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

• 7236054 ZCM21A58HMAX: : 24F MTP OM4 Fiber Optic MPO-LC 2.0mm Straight harness Cables

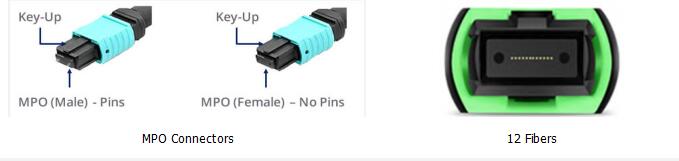

                                    Connector                                                                Fiber Channel

Three Connection Methods Help Keep the Right MTP/MPO Polarity

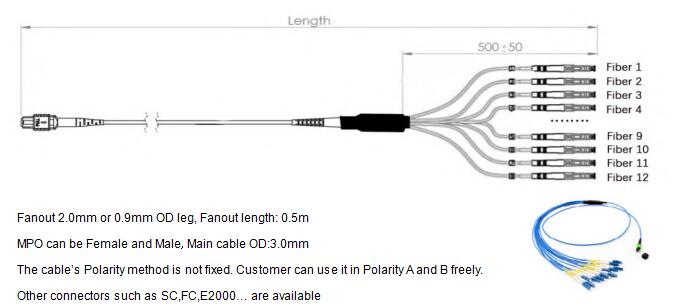

MPO –12 x LC Simplex structure-Type 1

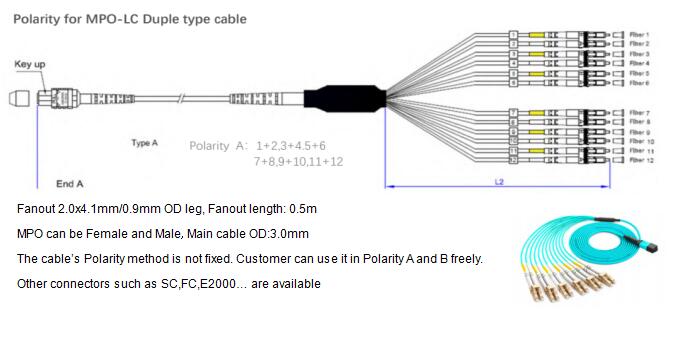

MPO –6 x LC Duplex structure-Type 2-Type A

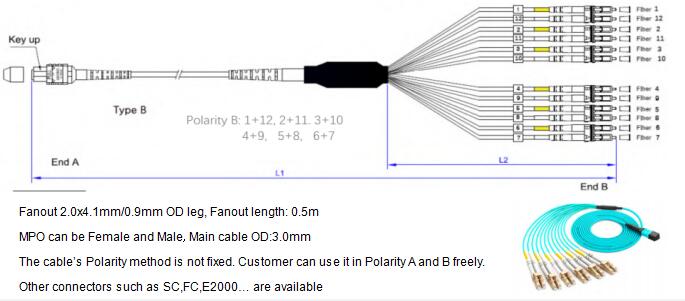

MPO –6 x LC Duplex structure-Type 2-Type B

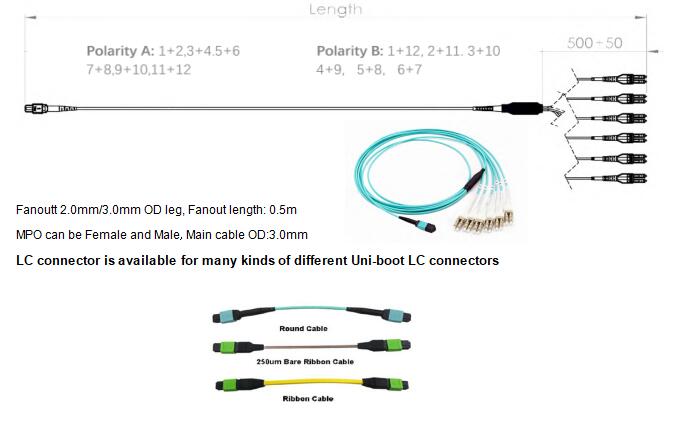

MPO –Polarity for MPO –6 x Uniboot LC structure-Type 3

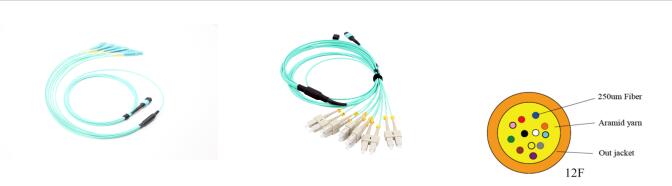

Material’s details

Packaging

This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .

Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty .

Packing can be customized.

OEM/ODM service for you

• Cable color, printing word, material of cable jacket, connector’s color
• OEM Label, Identify ring, cable’s label,box, shipping marks
• Different quality Level.
