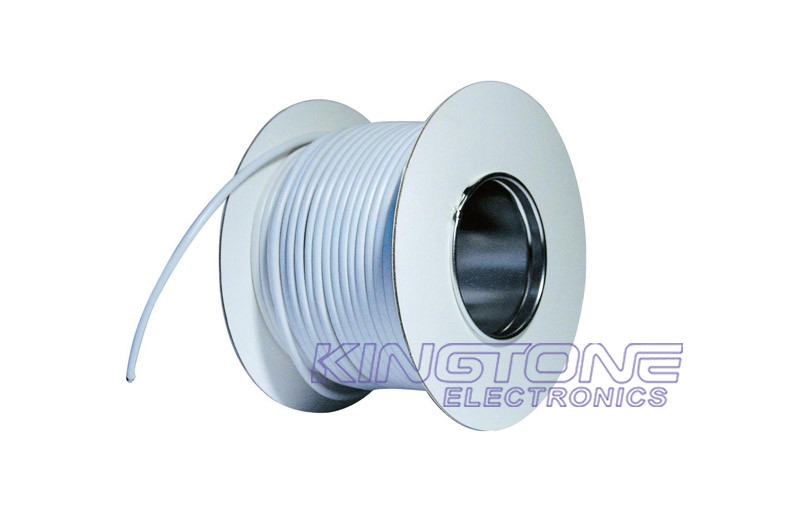

Unshielded 0.20mm2 Security Alarm Cable Solid Copper Conductor in 100M Length
Quick Detail:
- Security Alarm Cable
- 0.20mm2 Unshielded Type
- Solid Bare Copper Conductor
- PVC Insulation RoHS Compliant
- PVC Jacket Flame Retardant, White
- 100M, 300M, Paper Reel, Carton
- ISO, CE, UL, RoHS
Description:
Alarm Cable use conductor of Stranded or Solid CU/CCA/TCCA conductor,mainly packed in 100m
Alarm cable jacket color normally is white. Unlike audio/visual or networking cables,
most alarm wire technology has not changed in decades even with advances in alarm systems
and their associated detection devices. This being said,the wiring that goes into an alarm
system is as critical as any wire can be. Fire and security alarm cable provides the basic
framework upon which all of a building's asset protection is based.
Zion communication using best raw material and best worker to produce shielded and unshielded Alarm Cable
to meet high performance in practical application.
Applications:
Wiring Burglar & Security alarms, public address systems,intercoms,telephone stations, speakers,instrumentation,control and other low voltage circuits that are power limited.
| KT-1301 Security Alarm Cable Solid Copper Conductor 0.20mm2 Shielded 100M White | | | | Construction | | Conductor | 0.50mm TC/BC/CCA/TCCA | | | Shielded | AL/PE FOIL | | | Insulation | 0.95mm PVC | | | Drain Wire | TC/BC/CCA/TCCA | | | Rip Cord | Cotton Wire | | | Outer jacket | PVC(RoHs) flame retardant | | | | | Structure of single shielded 0.2mm2 soft alarm cable | | Serial No. | Section | Specification | Qverall Diameter(mm) | | D-01 | 2*0.20mm2 | 2*1/0.50 | 3 | | D-02 | 4*0.20mm2 | 4*1/0.50 | 3.5 | | D-03 | 6*0.20mm2 | 6*1/0.50 | 4.2 | | D-04 | 8*0.20mm2 | 8*1/0.50 | 4.5 | | D-05 | 10*0.20mm2 | 10*1/0.50 | 5.3 | | D-06 | 12*0.20mm2 | 12*1/0.50 | 5.5 | | D-07 | 16*0.20mm2 | 16*1/0.50 | 6 | | D-08 | 24*0.20mm2 | 24*1/0.50 | 7.3 | | | | Order Informations: | | Marking | Zion communication 0.20mm2 Unshielded Alarm Cable XXX M (or Per customer's request) | | Package | 100M, 300M, Paper Reel, Carton (or Per customer's request) | | Delivery time | Normally 25 days after received the deposit. | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and Zion communication.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
