Name: FLRYDY Automotive Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Cu-ETP1 bare according to DIN EN 13602

Insulation : PVC

Screen : Copper wire spiral shield

Sheath : PVC

Standard Compliance : ISO 6722 Class B

Special properties : Flame retardant Flexible conductors with PVC thin wall insulation with increased mechanical strength

Technical Parameters : Operating temperature:–40°C to + 105°C

Contact Now

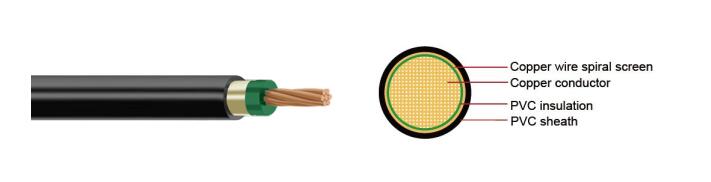

FLRYDY Automotive Cable
Product Description:
Conductor			Cu-ETP1 bare according to DIN EN 13602
Insulation			PVC
Screen			Copper wire spiral shield
Sheath			PVC
Standard Compliance			ISO 6722 Class B
Special properties			Flame retardant Flexible conductors with PVC thin wall insulation with increased mechanical strength
Technical Parameters			Operating temperature:–40 °C to +105°C
Application:
This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting,charging,lighting,signal and instrument panel circuits.

Zion's Hot Types of FLRYDY Automotive cable
	Conductor				Insulation Cable		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.		Electrical resistance at 20°C max.	Nominal thickness	Diameter of Core	Sheath Thickness	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	mm	mm	Kg/km
1x075	24/0.21	1.20		24.70	0.30	1.75	0.30	2.50	2.70	20.00
1x1.00	32/0.21	1.35		18.50	0.30	1.95	0.30	2.70	2.90	23.00
1x1.50	30/0.26	1.70		12.70	0.30	2.25	0.30	3.00	3.20	29.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.

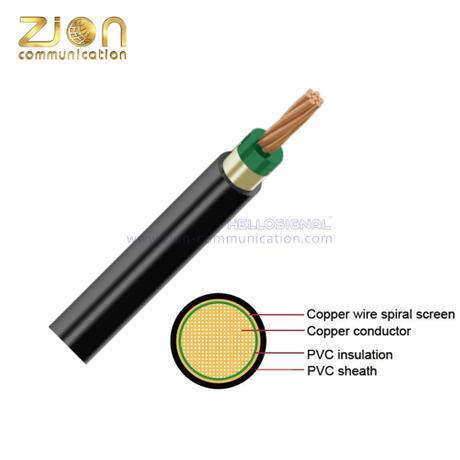

FLRYDY Automotive Cable Images
