PVC Insulation CAVS Automotive Cable JASO D 611-94

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: PVC Insulation CAVS Automotive Cable JASO D 61194
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Cu-ETP1 or bare according to DIN EN 13602

Insulation : PVC

Standard Compliance : JASO D 611-94

Technical Parameters : Operating temperature:–40 °C to +80 °C

Contact Now

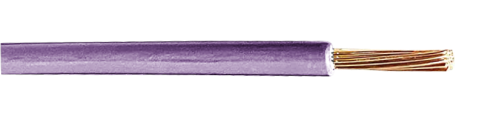

CAVS Automotive Cable
Product Description:
Conductor			Cu-ETP1 according to JIS C 3102
Insulation			PVC
Standard Compliance			JASO D 611-94
Technical Parameters			Operating temperature:–40°C to +80 °C
Application:
Automotive PVC insulated single-core low tension cable is used for automotive wiring.

Zion's Hot Types of CAVS Automotive cable
	Conductor				Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.		Electrical resistance at 20°C max.	Thickness Wallnom.	Overall Diameter Min.	Overall Diameter max.	Weight approx.
mm²	No./mm	mm		mΩ/m	mm	mm	mm	Kg/km
1 x0.30	7/0.26	0.70		50.20	0.35	1.40	1.50	3.00
1 x0.50	7/0.32	0.90		32.70	0.35	1.60	1.70	5.00
1 x0.85	11/0.32	1.10		20.80	0.35	1.80	1.90	7.00
1 x1.25	16/0.32	1.40		14.30	0.35	2.10	2.20	10.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
