RVV Electrical lnstallation Cable

Name: RVV Electrical lnstallation Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Electrical lnstallation Cable(RVV)

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : flexible ultra-fine stranded copper wire

Insulation : flexible heat resistant PVC

Color : Two core:black,white

Filler : cotton or pp filler

Jacket : flexble heat reslatant PVC mlxture

Produet reference standard : GB/T5023; JB8734

Contact Now

Electrical lnstallation Cable(RVV)
Electrical lnstallation Cable(RVV)

▉ Application
This cable is used as control and connec↑ing cables for electrical equipment.It apply to machine tool and complete sets of equipment for fixed installation.

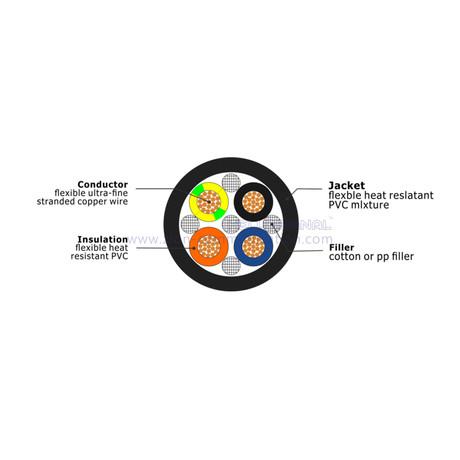

▉ Cable Construction
Conductors: flexible ultra-fine stranded copper wire
Insulation:flexible heat resistant PVC
Insulation Color:		Two core:black,white
		Three core:blue,brown,yellow/green
		Four:black,blue,brown,yellow/green
		Five core and above:black insulated wire print white font
Filler:cotton or pp filler
Jacket:flexble heat reslatant PVC mlxture
Produet reference standard:GB/T5023; JB8734
Note:Cable having more than 3 core contain yellow/green wire
▉ Product Feature
Good mechanical properties
Good capabillity of electric insulation and resistant to chemicals
Fire resistance meets IEC60332-1

▉ Cross Section





















▉ Technical data
Temperature Range		Bend: : -5℃~＋70℃
Temperature Range		Static : -15℃~＋70℃
Rated Voltage		CCC : 300/300V 300/500V
		IEC/VDE ＜ 1.5mm² ;300/300V
		IEC/VDE ≥ 1.5mm² ;300/500V
Test Voltage		≥0.5mm² 2500V/5min;
Insulation resistance		20℃ ≥ 10MΩ/km
Min bending radius
Fixed		6D(D=cable diameter)
Moving		15D(D=cable diameter)
Torsion angle		±90°/m
Moving:		±90°/m

▉ Product List
Item No.	Spec.	Nominal OD(mm)	Copper.weight approx (kg/km)	Wight approx(kg/km)
7144100	RVV 2×0.5mm²	5.3	9	35
7144101	RVV 3×0.5mm²	5.6	14	45
7144102	RVV 4×0.5mm²	6.4	19	58
7144103	RVV 5×0.5mm²	6.9	23	68
7144104	RVV 10×0.5mm²	9.4	47	119
7144105	RVV 15×0.5mm²	11.4	70	188
7144106	RVV 20×0.5mm²	12.6	93	237
7144107	RVV 30×0.5mm²	14.7	140	331
7144108	RVV 2×0.75mm²	6.1	14	46
7144109	RVV 3×0.75mm²	6.5	21	61
7144110	RVV 4×0.75mm²	7.4	28	79
7144111	RVV 5×0.75mm²	8.0	35	93
7144112	RVV 10×0.75mm²	11.7	70	189
7144113	RVV 15×0.75mm²	13.3	105	260
7144114	RVV 20×0.75mm²	14.7	140	331
7144115	RVV 30×0.75mm²	17.2	209	467
7144116	RVV 2×1.0mm²	6.8	19	59
7144117	RVV 3×1.0mm²	7.2	28	78
7144118	RVV 4×1.0mm²	7.9	37	93
7144119	RVV 5×1.0mm²	8.6	47	111
7144120	RVV 10×1.0mm²	12.5	93	225
7144121	RVV 15×1.0mm²	14.3	140	311
7144122	RVV 20×1.0mm²	15.8	186	398
7144123	RVV 30×1.0mm²	20.7	279	664




▉ Product List
Item No.	Spec.	Nominal OD(mm)	Copper.weight approx (kg/km)	Wight approx(kg/km)
7144124	RVV 2×1.5mm²	7.8	27	77
7144125	RVV 3×1.5mm²	8.3	41	103
7144126	RVV 4×1.5mm²	9.1	55	126
7144127	RVV 5×1.5mm²	10.6	68	171
7144128	RVV 10×1.5mm²	14.5	136	306
7144129	RVV 15×1.5mm²	16.6	205	428
7144130	RVV 20×1.5mm²	20.6	273	649
7144131	RVV 30×1.5mm²	23.9	409	903
7144132	RVV 2×2.5mm²	9.0	45	107
7144133	RVV 3×2.5mm²	9.6	67	146
7144134	RVV 4×2.5mm²	11.2	89	202
7144135	RVV 5×2.5mm²	12.2	111	242
7144136	RVV 10×2.5mm²	16.9	223	442
7144137	RVV 15×2.5mm²	21.6	334	729
7144138	RVV 20×2.5mm²	23.8	445	926
7144139	RVV 30×2.5mm²	27.8	668	1306


▉ Order Informations
Marking		HELLOSIGNAL Electrical lnstallation Cable(RVV) XXXFT/M
Package		100M/Reel, 300M/Wooden Spool
Delivery time		Normally 25 days after received the deposit.
Brand		HELLOSIGNAL® OR OEM
