Name: HDT Automotive Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Soft-annealed copper according to ASTM B3

Insulation : PVC

Standard Compliance : SAE J1128

Technical Parameters : Operating temperature:–40 °C to +85 °C

Contact Now

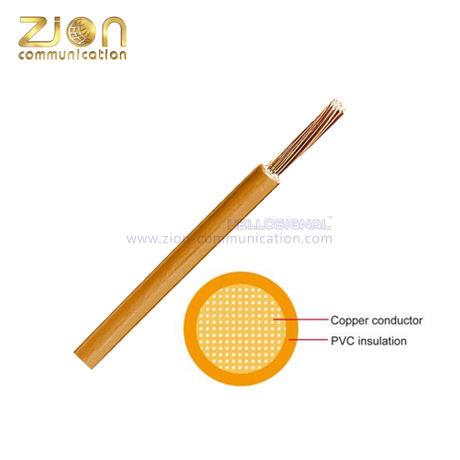

HDT Automotive Cable
Product Description:
Conductor			Soft-annealed copper according to ASTM B3
Insulation			PVC
Standard Compliance			SAE J1128
Technical Parameters			Operating temperature:–40 °C to +85 °C
Application:
Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

Zion's Hot Types of HDT Automotive cable
Type		Conductor		Insulation	Cable
SIZE	Nominal cross- section	No. and Dia. of Wires	Diameter Max.	Thickness wall Nom.	Overall Diameter max.	Weight approx.
AWG	mm²	No./mm	mm	mm	mm	Kg/km
20	1 x 0.50	7.31	1	0.91	2.80	14.0
18	1 x 0.80	16.26	1.5	0.94	3.00	20.0
16	1 x 1.00	19.29	1.5	1.02	3.50	25.0
14	1 x 2.00	19.36	1.8	1.04	3.90	33.0
12	1 x 3.00	19.45	2.3	1.17	4.60	49.0
10	1 x 5.00	19.57	3	1.17	5.30	71.0
8	1 x 8.00	49.45	3.7	1.4	6.50	98.0
Note: Other configurations, sizes, colors and length not specified herein are available upon request.

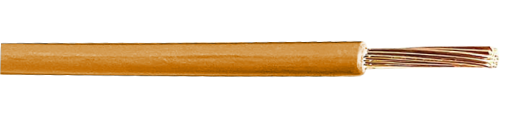

HDT Automotive Cable Images
