Name: GXL Automotive Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Soft-annealed copper according to ASTM B3

Insulation : XLPE (Polyethylene crosslinked)

Standard Compliance : SAE J1128

Technical Parameters : Operating temperature:–40 °C to +125 °C

Contact Now

GXL Automotive Cable
Product Description:
Conductor			Soft-annealed copper according to ASTM B3
Insulation			XLPE (Polyethylene crosslinked)
Standard Compliance			SAE J1128
Technical Parameters			Operating temperature:–40 °C to +125 °C
Application:
Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

Zion's Hot Types of GXL Automotive cable
Type		Conductor		Insulation		Cable
SIZE	Nominal cross- section	No. and Dia. of Wires	Diameter Max.	Thickness wall min.	Thickness wall Nom.	Overall Diameter max.	Weight approx.
AWG	mm²	No./mm	mm	mm	mm	mm	Kg/km
20	1 x 0.50	19/0.20	0.97	0.41	0.58	2.40	9.0
18	1 x 0.80	19/0.23	1.17	0.41	0.58	2.50	12.0
18	1 x 0.80	16/0.25	1.17	0.41	0.58	2.50	12.0
16	1 x 1.00	19/0.24	1.45	0.41	0.58	2.90	17.0
14	1 x 2.00	19/0.36	1.8	0.41	0.58	3.20	25.0
12	1 x 3.00	19/0.45	2.29	0.46	0.66	3.80	38.0
10	1 x 5.00	19/0.57	2.87	0.56	0.79	4.70	58.0
Note: Other configurations, sizes, colors and length not specified herein are available upon request.

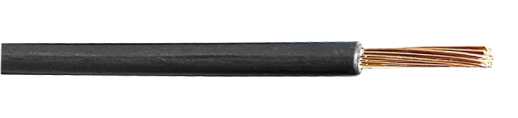

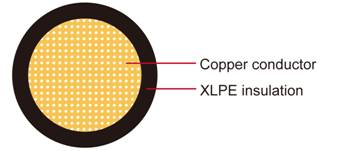

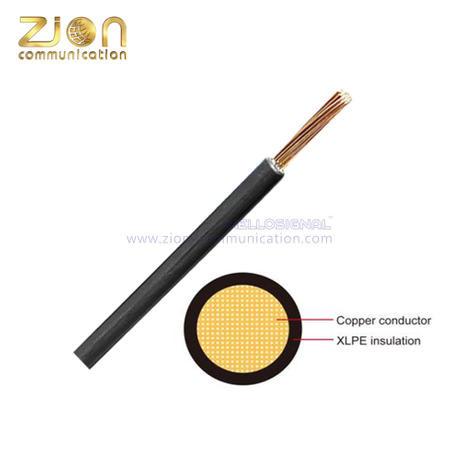

GXL Automotive Cable Images
